High Performance 50HZ 6 cylinders diesel water cooled cummins 85kva power generator for industrial designed

50HZ 6 cylinders diesel water cooled cummins 85kva power generator for industrial designed

Technical data:

Genset specification
Genset Model	EP-C85S
Prime Power(50HZ)	68KW /85KVA
Standby Power(50HZ)	75KW /94KVA
Frequency/Speed	50Hz/1500rpm
Standard Voltage	230V/400V
Voltage Available	220V/380V,240V/415V
Phases	Three phases, four wires

Engine Specification General Performance
Manufacturer:	Dongfeng Cummins Engine Co. Ltd.
Engine Model:	6BT6.9-G1
Engine Type:	4 stroke, Vertical in-line, 6-cylinder
Engine Speed:	1500 r.p.m
Prime Power:	86kw
Standby Power:	92kw
Governor Type:	Mechanical
Air Intake Way:	Turbocharged
Displacement:	5.9L
Cylinder Bore * Stroke:	102mm × 120mm
Compression Ratio:	16.5:1
Coolant Capacity Engine Only	9.9 Liters

Alternator data
Engine Model:	Stamford UCI224G
Phase	3 Phase
Power Factor	0.8
Drip Proof	IP 23
Insulation class	H
Voltage regulation	± 0,5 %
Altitude	≤ 1000 m
Over speed	2250 min -1

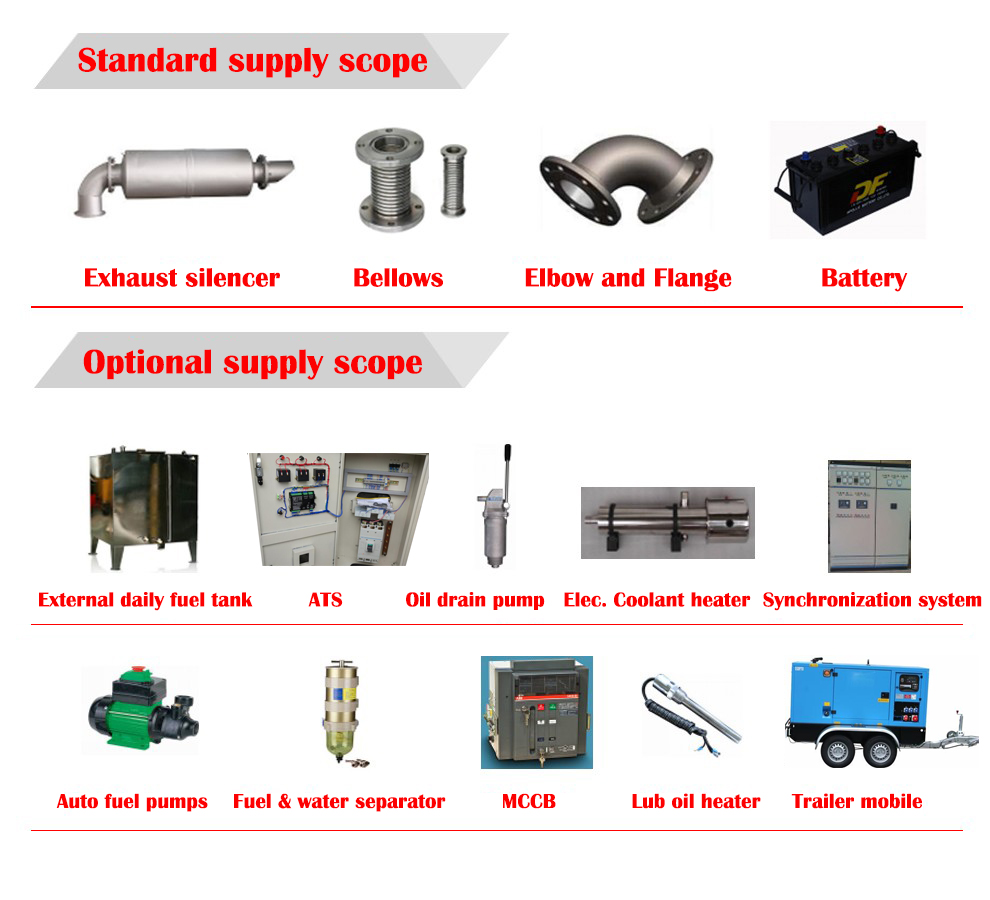

Genset Standard Configuration

♦ Assembled by Cummins diesel engine and world famous brand alternator
♦ Radiator and fan with safety guard
♦ Automatic control panel and electricity output switch cabinet
♦ Float battery charger and solenoid switch as standard supply scope
♦ Built-in shock pad
♦ Heavy duty steel as base frame and 6-8hrs operation base fuel tank.(suit for 8kva-750kva)
♦ Optional voltage rank: 230V/400V, 220V/380V, 127V/220V, 240V/480V etc.

OPENTYPES

120kw 50hz cummins diesel generator set with 6CTA8.3-G2 engine china supplier best quality

Genset Standard Configuration

Our Commitment

♦ Products and services all comply with ISO8528 and GB/T2820 manufacturing standards.

♦ Management is implemented in strict accordance with ISO9001 Quality Management System and ISO14001Environmental Management System.
♦ All products are CE-certified.
♦ All products have passed rigorous factory test to ensure high quality.
♦ Product warranty terms are strictly enforced.
♦ High-efficiency assembly and production lines ensure on-time delivery.
♦ Professional, timely, thoughtful and dedicated services are offered.
♦ Favorable and complete original accessories are supplied.
♦ Regular and irregular technical training are provided all year round.
♦ 24/7/365 Customer Service Center provides fast and effective responses to customers’ service demands.
