China SDEC Shangchai 80KW Diesel Generator set 6135D-3 diesel engine prime power 100kva power generator factory price

FUJIAN EKSAPOWER GROUP
Contact Now
    Buy cheap China SDEC Shangchai 80KW Diesel Generator set 6135D-3 diesel engine prime power 100kva power generator factory price from wholesalers

    Buy cheap China SDEC Shangchai 80KW Diesel Generator set 6135D-3 diesel engine prime power 100kva power generator factory price from wholesalers
    • Buy cheap China SDEC Shangchai 80KW Diesel Generator set 6135D-3 diesel engine prime power 100kva power generator factory price from wholesalers

    China SDEC Shangchai 80KW Diesel Generator set 6135D-3 diesel engine prime power 100kva power generator factory price

    Ask Lasest Price
    Brand Name : Shangchai
    Model Number : 6135D-3
    Certification : CE,ISO.SONCAP
    Price : Negotiable
    Payment Terms : L/C, T/T, MoneyGram
    Supply Ability : 500PCS per month
    Delivery Time : Within 4 weeks after received advance payment
    • Product Details
    • Company Profile

    China SDEC Shangchai 80KW Diesel Generator set 6135D-3 diesel engine prime power 100kva power generator factory price

    China SDEC Shangchai 80KW Diesel Generator set 6135D-3 diesel engine prime power 100kva power generator factory price


    Products details
    RELATED PRODUCTS

    The main parameters of 300kw diesel generator with shangchai engine
    The model of the unit:EP-S100
    Power:80KW/100KVA
    Rated voltage:230V/400V(adjustable)
    Rated current:260A
    Rated frequency:50Hz/60Hz
    The factor of rated powerCOS=0.8(lag)
    The regulating rate of steady voltage:≤±0.5%
    The regulating rate of instantaneous voltage:≤-10%/ +15%
    The time of steady voltage:≤1.5sec
    The waving rate of voltage:≤0.5%
    The regulating rate of steady frequency:≤3%
    The regulating rate of instantaneous frequency:≤±5%
    The time of steady frequency:3sec
    The waving rate of frequency:≤0.25%
    The waste of fuel with full load:198g/kw/h
    size(mm):3000*1300*1950
    weight:2700
    The main parameters of the engine for 300kw diesel generator with shangchai engine
    Brand:SHANGCHAI
    Model:SDEC 6135D-3
    Type:four strokes, waste gas turbine boost,direct spurting type
    Cooling way:water cooling
    With Type:L type
    Bore *Trip :128*153
    Displacement11.8
    Lubricating oil capacity:45
    Cylinder:6cylinders
    Rotating speed:1500r/min or 1800r/min
    The regulation of rotating speed:Electronic speed
    Starting way:DC24V starting with electricity
    The main parameters of alternator for 300kw diesel generator with shangchai engine
    Brand:ComAp,Stamford,Marathon,Sdanford
    Type:brushless (AVR automatic voltage regulating)
    The connecting way of the phase:three phases four lines
    Insulation degree:H degree
    Grading Protection:IP22

    PRODUCTS ADVANTAGES


    (1)The silent canopy we use cold-rolled sheet, all positions are stronger.


    (2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the painting will not change color even if placed outside for five years.


    (3)Canopy color painted by customer’s requirement.


    (4)Strict test including 50% load,75% load,100% load and 110% Load .


    (5)Forklift mouth in base frame for easy loading and discharging.


    (6)Logo made by customer's requirement if order quantity ≥10units or a full container.


    PRODUCTS IMAGES

    OUR ADVANTAGE

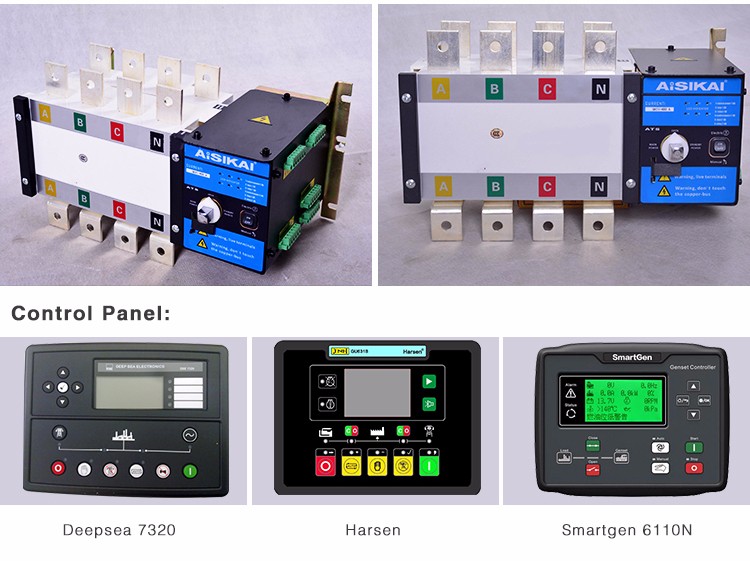

    OPTIONS PANEL

    Automatic Transfer Switch:

    When the city power supply failures,ATS helps the genset automatically start running shortly:or vice versa,meaning when city power recovers,it will shut down by itself.

    PRODUCT DETAILS


    PACKAGES


    Transfer

    Sales Process

    FAQ

    Q: Do you offer OEM service?

    A: Yes

    Q: What is your payment term?

    A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.

    Q: What is your lead time?

    A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the delivery time is longer.

    Q: What certificates do you have?

    A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, CIQ forEgypt, SASO for Saudi Arabia, etc

    Q:What is your MOQ?

    A: Above 1pc

    Q. Which port do you often use when export?

    A: Fuzhou Port, or as customer request.

    Q.How to choose the power?

    A.:Collect all power of your equipments,take the current into your consideration.

    Q.What is the difference between Prime power and Standby power?

    A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.

    Standby power is the limit value of maximum output for emergency use. Overloading is prohibited

    Q.What about the warranty

    Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,our company will provide the free easy damaged spare part for problems caused by our quality of production orraw material except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration, our company provides cost parts maintenance for gen-set.


    Interested in our products contact with us no hesitated !
